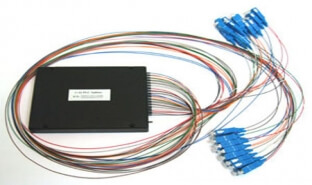

Planar Lightwave Circuit Splitters

We supply the bare fiber PLC splitters and Rack mount PLC splitters with good price and fast delivery.they are used typically in FTTH applications.

Fiber Optics PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements.With it’s compact size,these splitters can be utilized in in-ground and
aerial pedestals as well as rack mount systems. Installation is simple using a variety of connector types or fusion splicing.We supply Planar Lightwave Circuits which are key components used in FTTx networks. We supply the PLC splitters including 1XN to 64 and 2XN to 32 types, they are with a wide range of working wavelength from 1260nm to 1620nm. The PLC splitter can be with optional various kinds of connectors and cable length, they feature compact size and very good optical performance.

Singlemode PLC Splitters in a variety of package types and configurations
Optical performance 100% factory tested
UPC, and APC polish types available for connectorized products
Low Insertion Loss, Back Reflection and PDL
Telcordia GR-CORE 1221 certified
Operating Window 1260~1600nm
Polarization Stability (dB) ≤ 0.50dB
Port Configuration 1×4, 1×8, 1×16, 1×32
Back Reflection (dB) ≤ -55 UPC
≤ -65 APC
Operating Temperature (°C) -20~+70
Storage Temperature (°C) -40~+85
Package size 8×8.1×5.2mm

PLC Splitter Applications:
LAN, WAN & Metro
Passive Optical
FTT(X) Systems
Value Added Modules

PLC splitter features
1×4, 1×8, 1×16, 1×32 and 1×64 configurations available
2×4, 2×8, 2×16, 2×32 configurations available
Telcordia GR-1209 & GR-1221 qualified
Low insertion loss, PDL, Back Reflection
High uniformity
Compact package
